Key Features & Capabilities
System Overview & Design

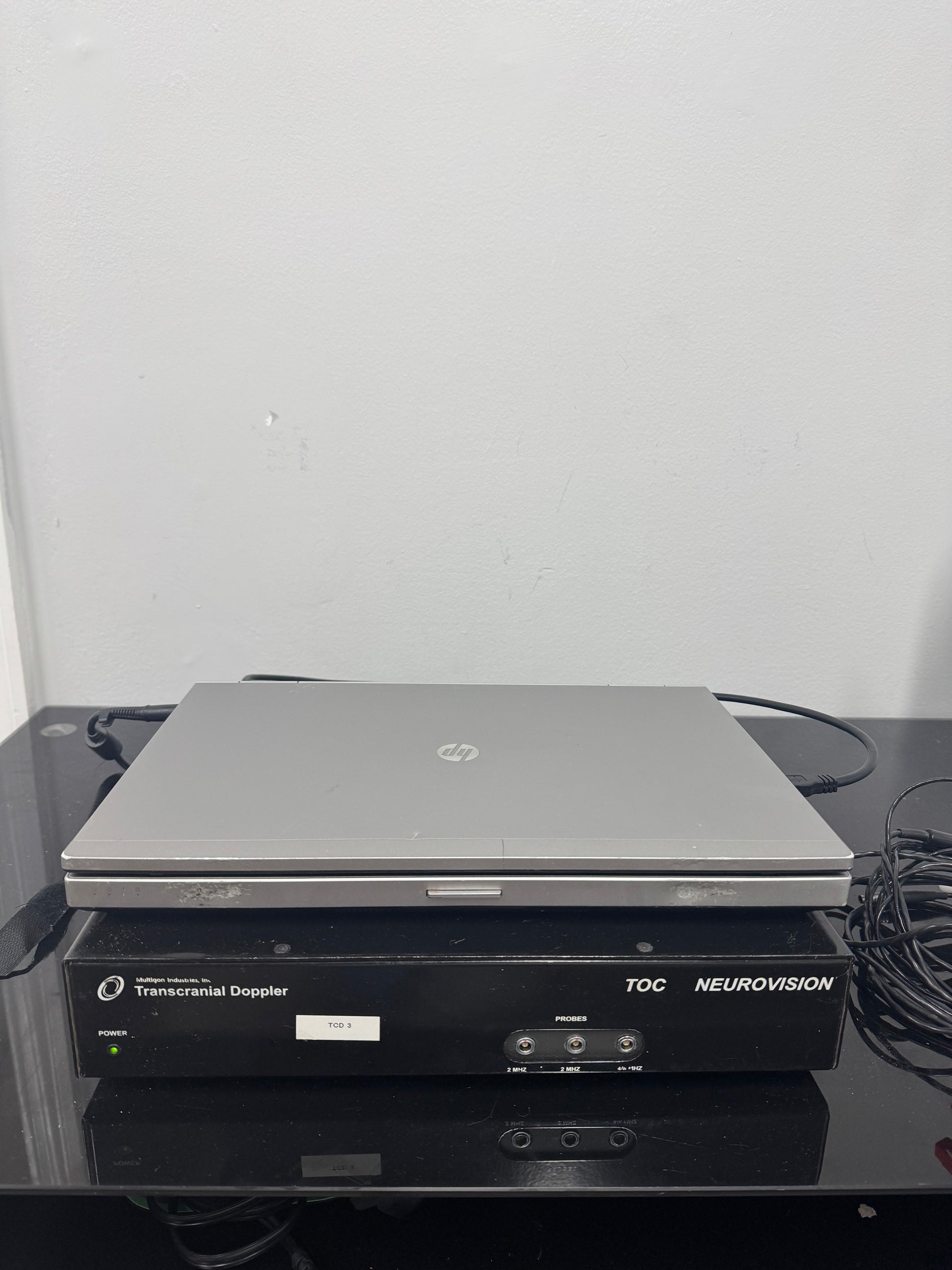

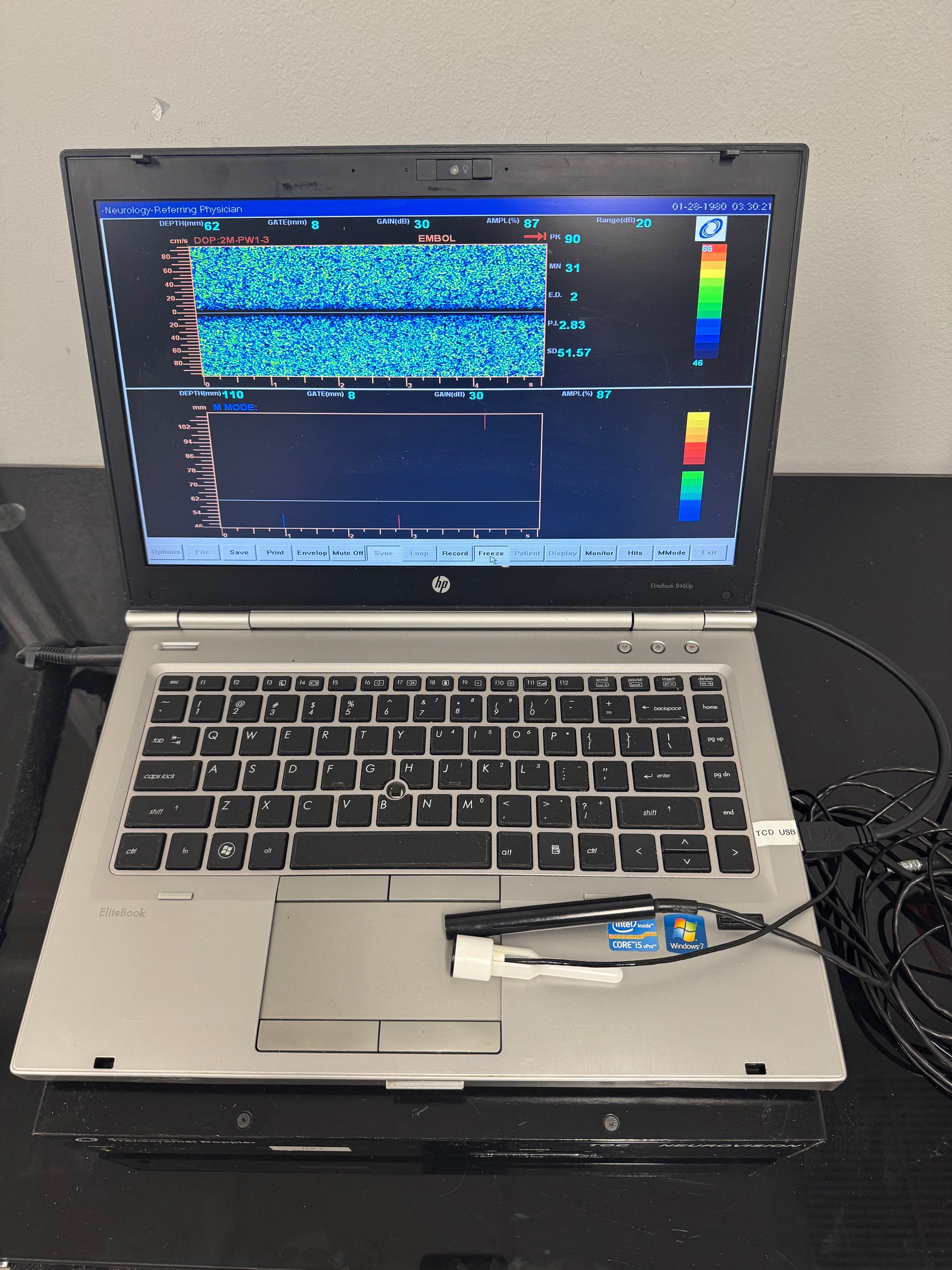

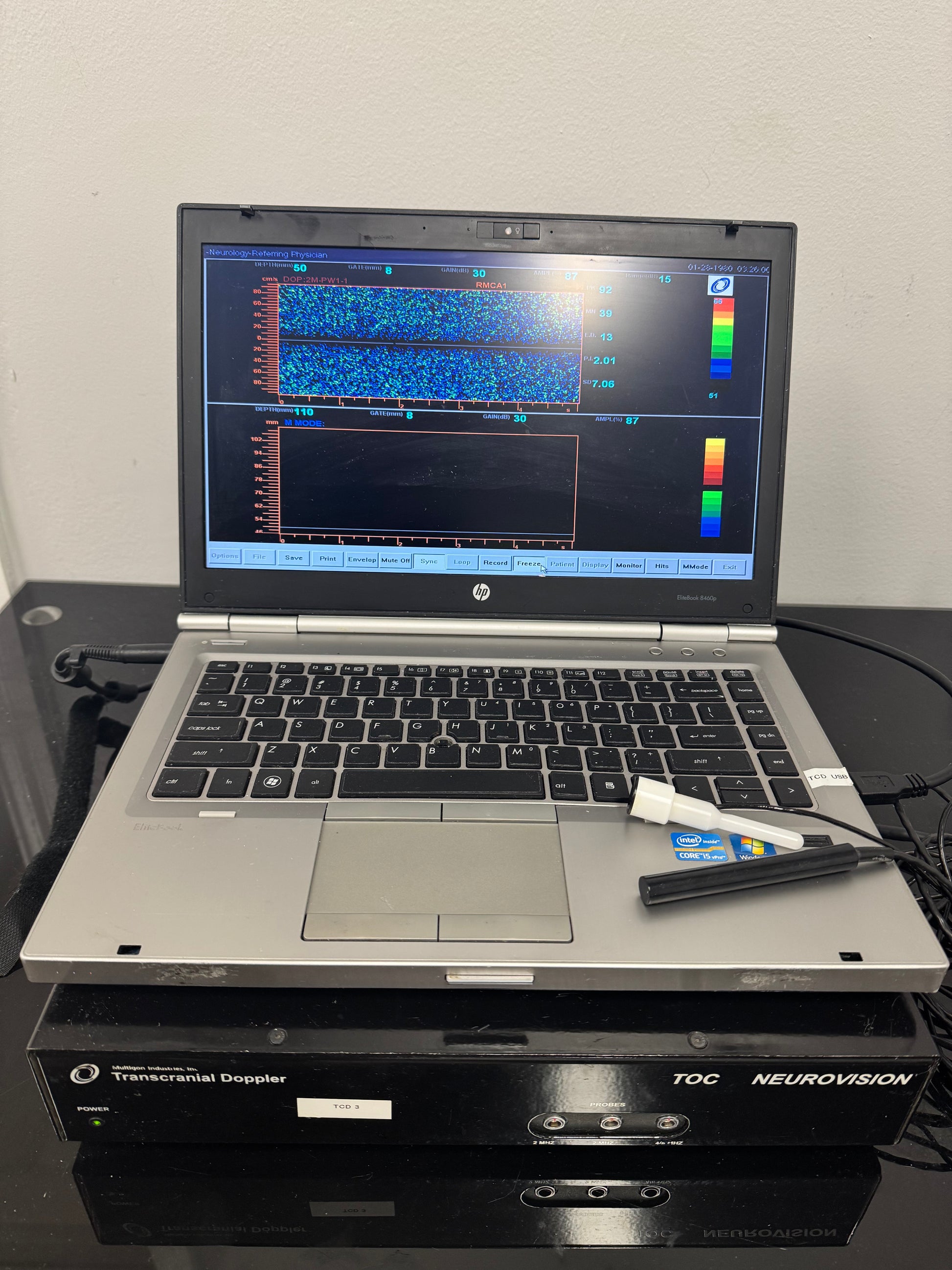

• The TOC Neurovision™ series is a powerful yet affordable diagnostic TCD, offering multi-channel capability, M-Mode display, long-term monitoring, emboli detection, and visually rich patient reports, ideal for diverse clinical settings.
Clinical Applications
• Main Uses Include:
o Monitoring vasospasm, especially post-aneurysmal subarachnoid hemorrhage
o Evaluating intracranial stenosis and collateral flow in stroke/TIA assessment
o Detecting PFO (patent foramen ovale) via shunt testing
o Supporting diagnosis of brain death and evaluation of vasomotor reserve (CO₂ reactivity)
o Assisting in vascular interventional procedures, AVM studies, and sickle cell disease monitoring
Reporting & File Management
• Equipped with a TCD Neurovision™ file storage system for archiving and printing complete reports. Data can be saved into a patient database with support for external backup via CD-ROM, DVD, and optional DICOM compatibility.
Portability
• Lightweight and compact design makes it ideal for hospital wards, mobile clinics, and bedside use.
Technical Specs
• Operating System: Windows XP Professional
• Probes: 2 MHz PW, 4 & 8 MHz CW
• Adjustable Gain: 1–40 dB
• Sampling Volume: 4–20 mm (1 mm steps)
• Max PW Velocity: 512 cm/s
• Output: Optional DICOM
• Form Factor: 13 lbs; size ~13" W × 12¼" L × 2¾" H
Price is $11,995 and it includes a 90 day warranty with an option to purchase an extended warranty. Shipping Fees start at $125.
The sale of this item may be subject to regulation by the U.S. Food and Drug Administration and state and local regulatory agencies. If so, do not bid on this item unless you are an authorized purchaser. If the item is subject to FDA regulation, I will verify your status as an authorized purchaser of this item before shipping of the item.
